1.Optimize Gear Design:

Tooth Profile & Helix Angle: Optimize gear tooth profile and helix angle to minimize meshing impact and noise.

Surface Finish: Reduce gear surface roughness to decrease friction and noise.

Gear Precision: Improve manufacturing accuracy to reduce meshing errors and noise.

Gear Material: Select materials with good wear resistance and low-noise characteristics.

2.Improve Bearings & Seals:

Bearing Selection: Use low-noise, high-precision bearings and ensure proper installation.

Seal Selection: Choose appropriate seals to prevent noise leakage and external noise ingress.

3.Use Vibration Damping & Sound Absorption Materials:

Damping Pads: Install vibration-damping pads between the axle housing and chassis to reduce vibration transfer.

Sound-Absorbing Materials: Apply sound-absorbing materials around the axle to minimize noise propagation.

Enclosed Housing: Use a noise-insulating housing to further reduce noise emissions.

4.Select the Right Lubricant:

Viscosity: Choose the optimal lubricant viscosity to ensure proper gear and bearing lubrication, reducing friction and noise.

Additives: Use additives with anti-wear and noise-reduction properties to enhance lubricant performance.

5.Additional Measures:

Regular Maintenance: Periodically inspect and replace lubricants to maintain axle condition and minimize noise.

Drivetrain Optimization: Optimize the entire drivetrain design to reduce noise transmission.

Driving Habits: Smooth driving (avoiding sudden acceleration/braking) can also help reduce noise.

By implementing these measures, drive axle noise can be effectively controlled, improving vehicle comfort.

The advantages of double-layer winding

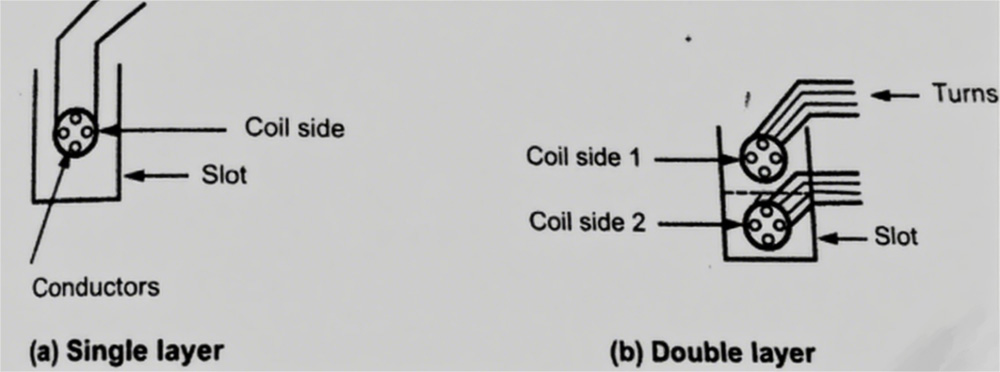

If a slot consists of only one coil side, winding is said to be a single layer. This is shown in figure(a). While there are two coil sides per slot, one, at the bottom and one at the top the winding is called double layer as shown in figure(b).A lot of space gets wasted in single layer hence in practice generally double layer winding is preferred.

Double-layer winding offer a variety of significant advantages, which not only enhance the operational performance of electric motors but also optimize their design and manufacturing processes.

First, in terms of electromotive force (EMF), the adoption of double-layer winding results in an EMF waveform that more closely approximates a sine wave, with significantly reduced harmonic content. This leads to smoother motor operation while mitigating vibration and noise issues.

Second, the design of double-layer winding helps reduce energy consumption and temperature rise in motors. Compared to single-layer winding, double-layer winding enable a more uniform magnetic field distribution, thereby reducing core losses and stray losses, which in turn lowers energy consumption and temperature rise. This design optimization ensures that the motor maintains efficient and stable performance during prolonged operation.

Additionally, double-layer winding can significantly improve motor efficiency. Since their EMF more closely resembles a sine wave, the harmonic content in the magnetic flux is reduced, thereby decreasing eddy current losses in the core and copper losses in the stator and rotor conductors. These improvements not only enhance motor efficiency but also extend the motor's service life.

Moreover, the double-layer winding structure effectively reduces the motor's size and weight. Compared to single-layer winding, double-layer winding occupy less space, resulting in a more compact motor design. This space-efficient approach not only improves spatial utilization but also makes the motor more suitable for a wide range of applications, particularly in scenarios with strict size and weight requirements.

In summary, the numerous advantages of double-layer winding make them a preferred solution in modern motor design. Whether considering operational performance, energy efficiency, or compact design, double-layer winding demonstrate outstanding benefits, leading to their widespread adoption in the motor manufacturing industry.
