JH Axle 10kW Electric Power train for Mini EVs – Reliable & Efficient Power Solution

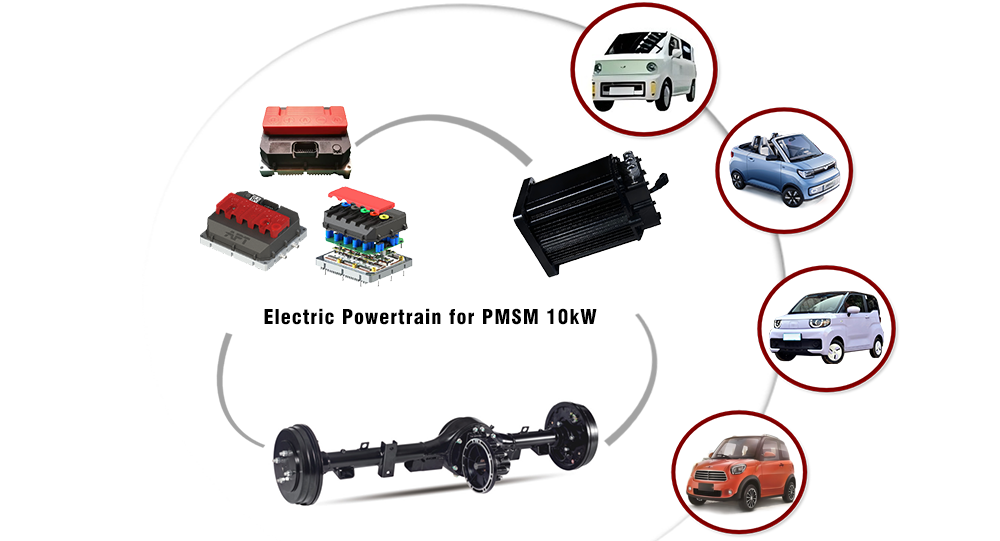

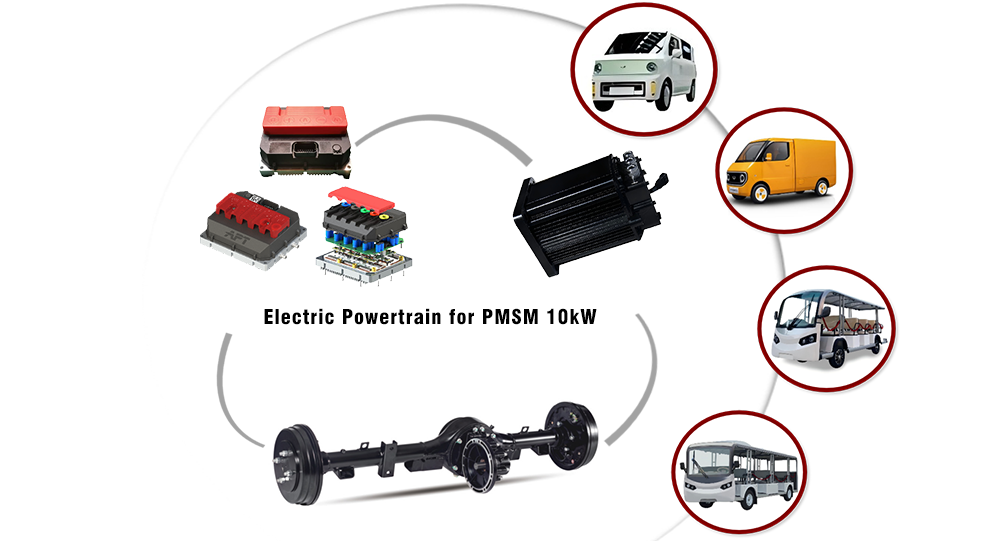

PMSM 10kW Electric Power train for Mini EV

Our 10kW electric rear axle system is specifically designed for electric tricycles and electric four wheels, delivering efficient and reliable power transmission that enhances both acceleration and driving range.

With a maximum power output of 10kW and peak torque of 300Nm, the system enables smooth acceleration, significantly improving the vehicle's performance and stability.

Perfectly matched with electric drive systems, it ensures enhanced control and stability during both urban driving and extended operation.

Our rear axle system has already been successfully applied in variouselectric golf carts,tricycles, and electric logistics vehicles, with customer feedback highlighting outstanding performance and improved energy efficiency.

By integrating this complete vehicle solution, OEM can not only boost vehicle power and range, but also shorten development cycles, reduce R&D efforts,and deliver higher-quality electric mobility solutions to their customers.

Key Features

• Fully engineered and Pre-tested as a complete drive solution


• High-efficiency PMSM motor with up to 95% energy conversion rate


• Controller with Bluetooth communication, CAN 2.0 support, and programmable logic


• Regenerative braking & intelligent slope-hold feature


• Customizable driving axle with low noise and high durability


• Support for different vehicle chassis and wheel bolt patterns

Send your vehicle specs and get a customized BOM recommendation from our expert engineers.

Product Description

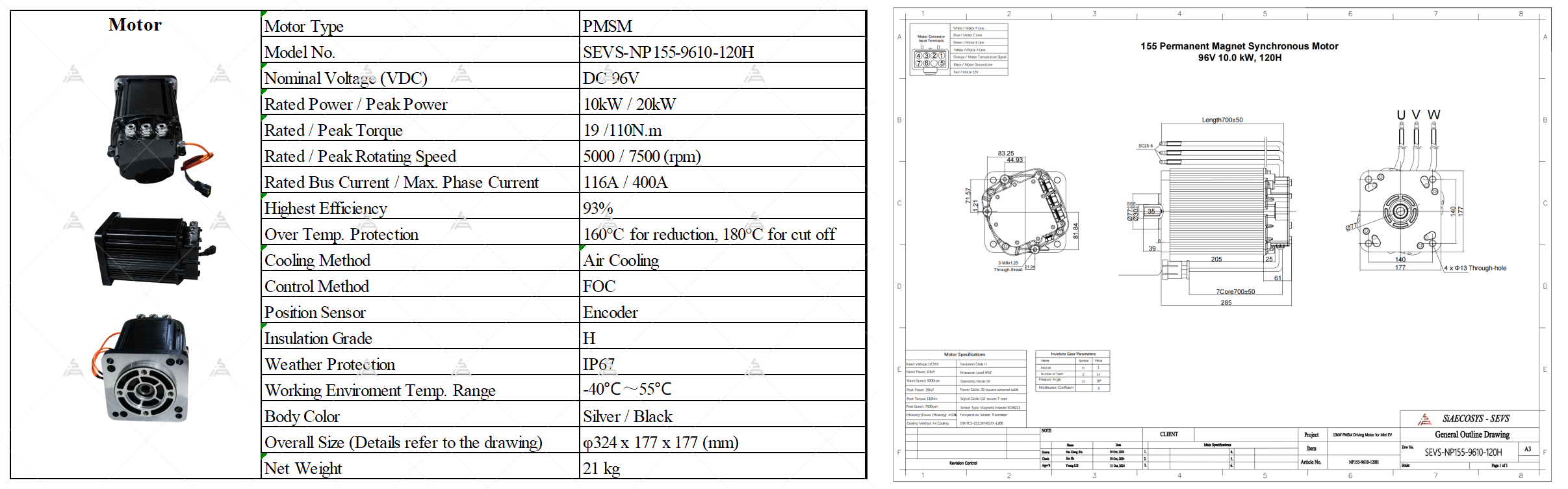

1. PMSM 10KW ELECTRIC MOTOR

Model No.: SEVS-NP155-9610-120H

Basic Specification ：                                                                                                                                                                                                         Dimension Drawing：

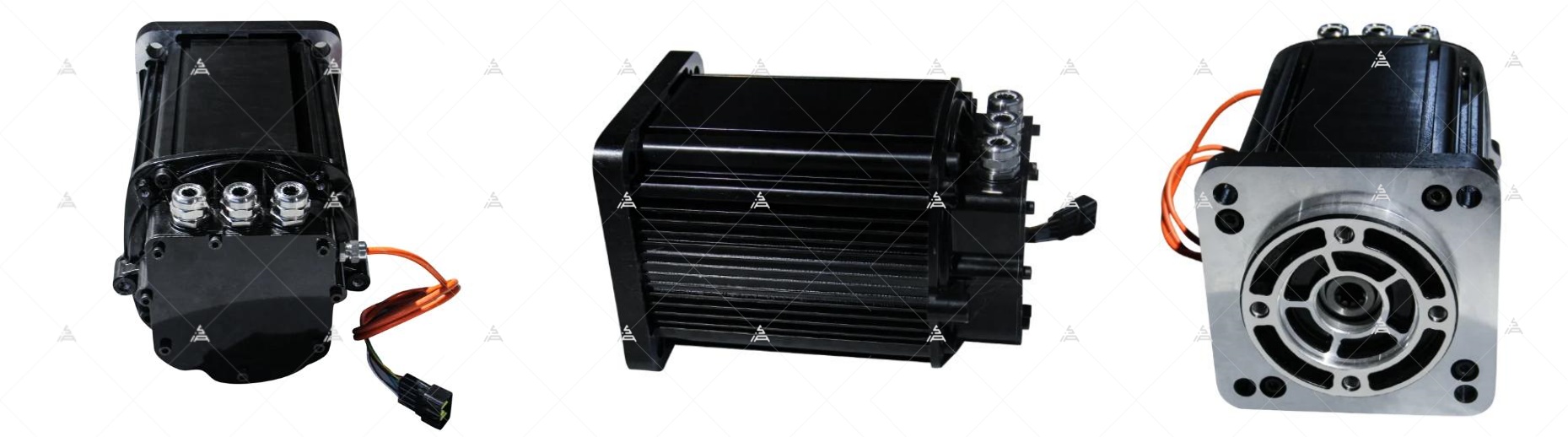

Multi-angle product photos：

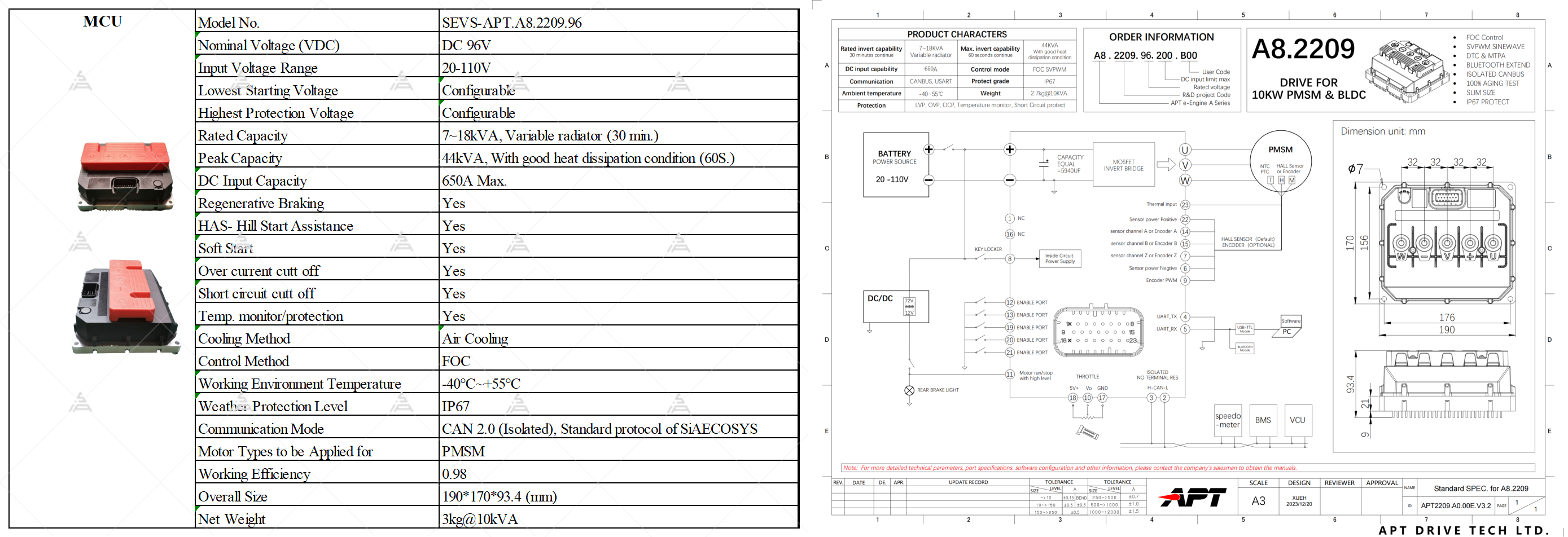

2. MCU for 10KW PMSM MOTOR

Model No.: SEVS-NP155-9610-120H

Basic Specification:                                                                                                                                                                                   Dimension Drawing：

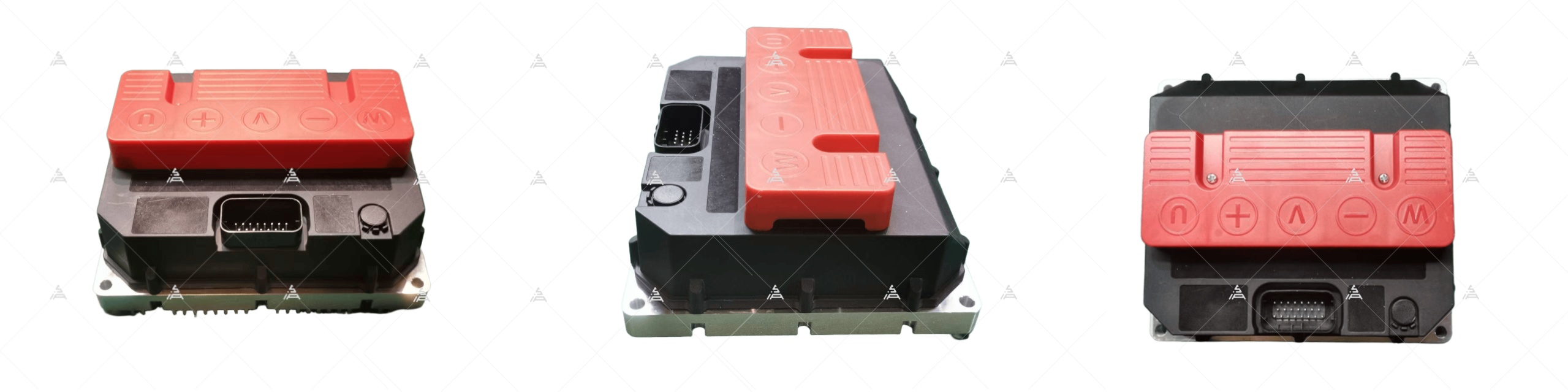

Multi-angle product photos：

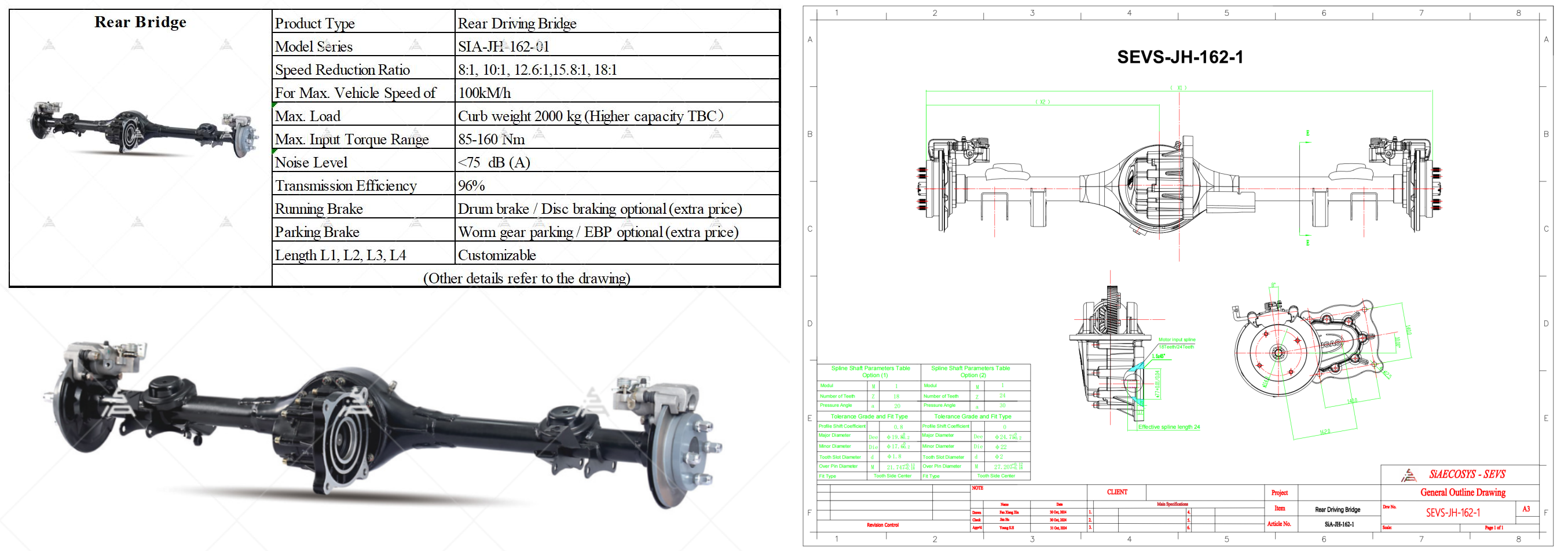

3. Rear Axle System

Model No.: JH-162-01

Basic Specification:                                                                                                                                                                                     Dimension Drawing：

Various vehicle usage scenarios

Click below to contact our team or request your tailored quotation today.
