4000W AC Motor (48–72V) for Electric Tuk-tuk & Rickshaw Application

4000 Watt 48-72V AC Motor for Tuk-tuk Electric Rickshaw

This 4kW AC motor is designed for electric three-wheelers like TukTuks, offering a strong balance of power, efficiency, and durability. It operates at 60V/72V, making it compatible with most EV systems.

With up to 82N·m peak torque and 7200rpm top speed, it delivers smooth acceleration and excellent climbing performance, even under heavy load.

Its robust aluminum housing, IP65/IP67 protection, and air-cooling system ensure stable operation in demanding environments. Thermal Class H and S9 mode support long-duration usage.

Equipped with a Hall sensor and compatible with sine wave or vector controllers, this motor is ideal for both new EV builds and conversion projects.

Key Features

• Optimized 4kW AC motor design for electric three-wheelers and light EVs

• Wide voltage support: 60V/72V, compatible with mainstream EV power systems

• High peak torque (82N·m) and power (8kW for 10 minutes) for strong load response

• IP65/IP67 ingress protection and S9 operating mode for harsh environments

• Hall sensor for precise rotor position detection and smoother motor control

• Efficient air-cooling structure for reliable thermal performance

• Rated speed of 4200rpm with up to 7200rpm at peak load

• Built for high-duty cycles with insulation class H and max 280A peak phase current


CONTACT US

Product Description

-PMSM 10KW ELECTRIC MOTOR

Model No.: MT-4000-48~72V

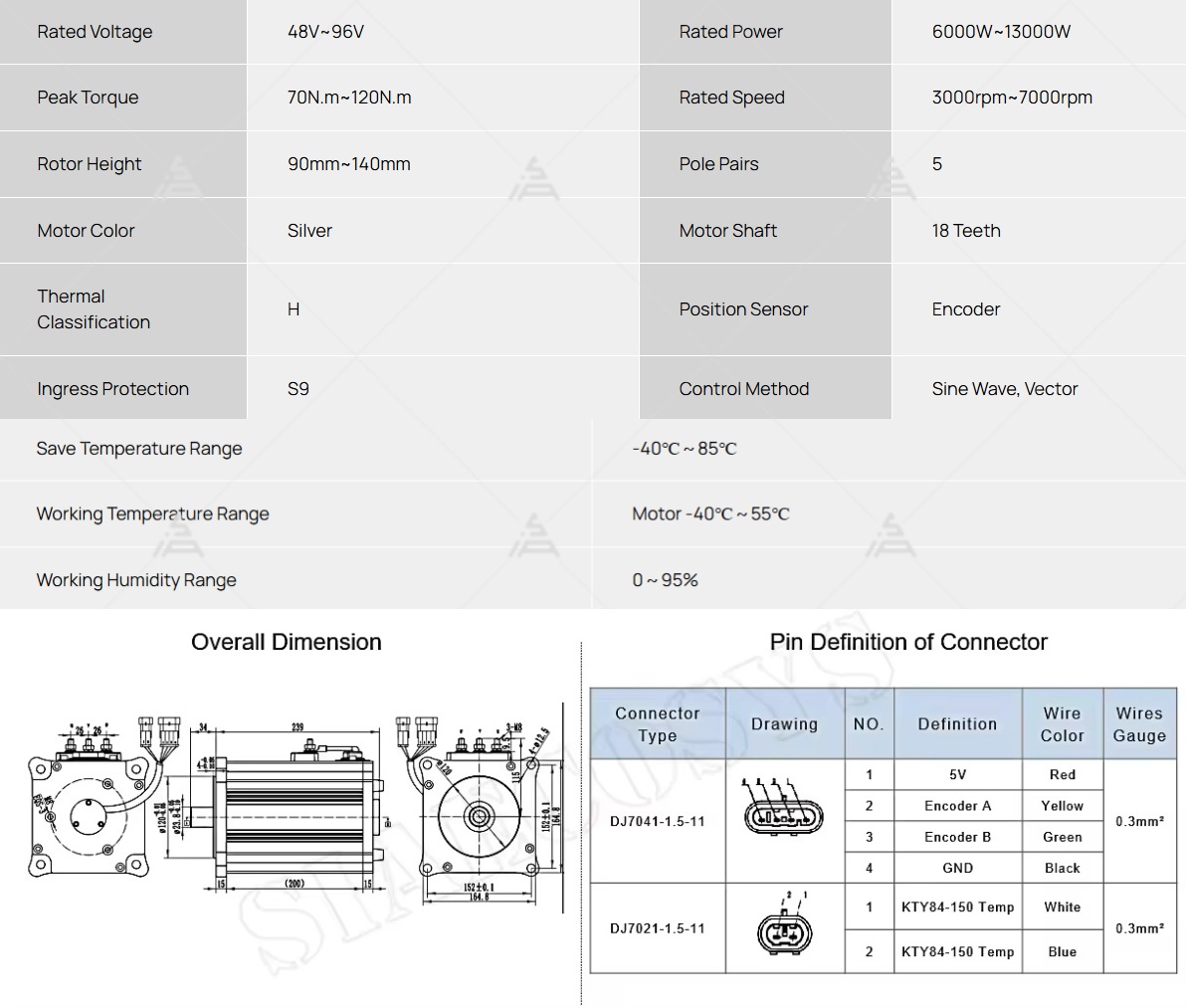

Basic Specification：

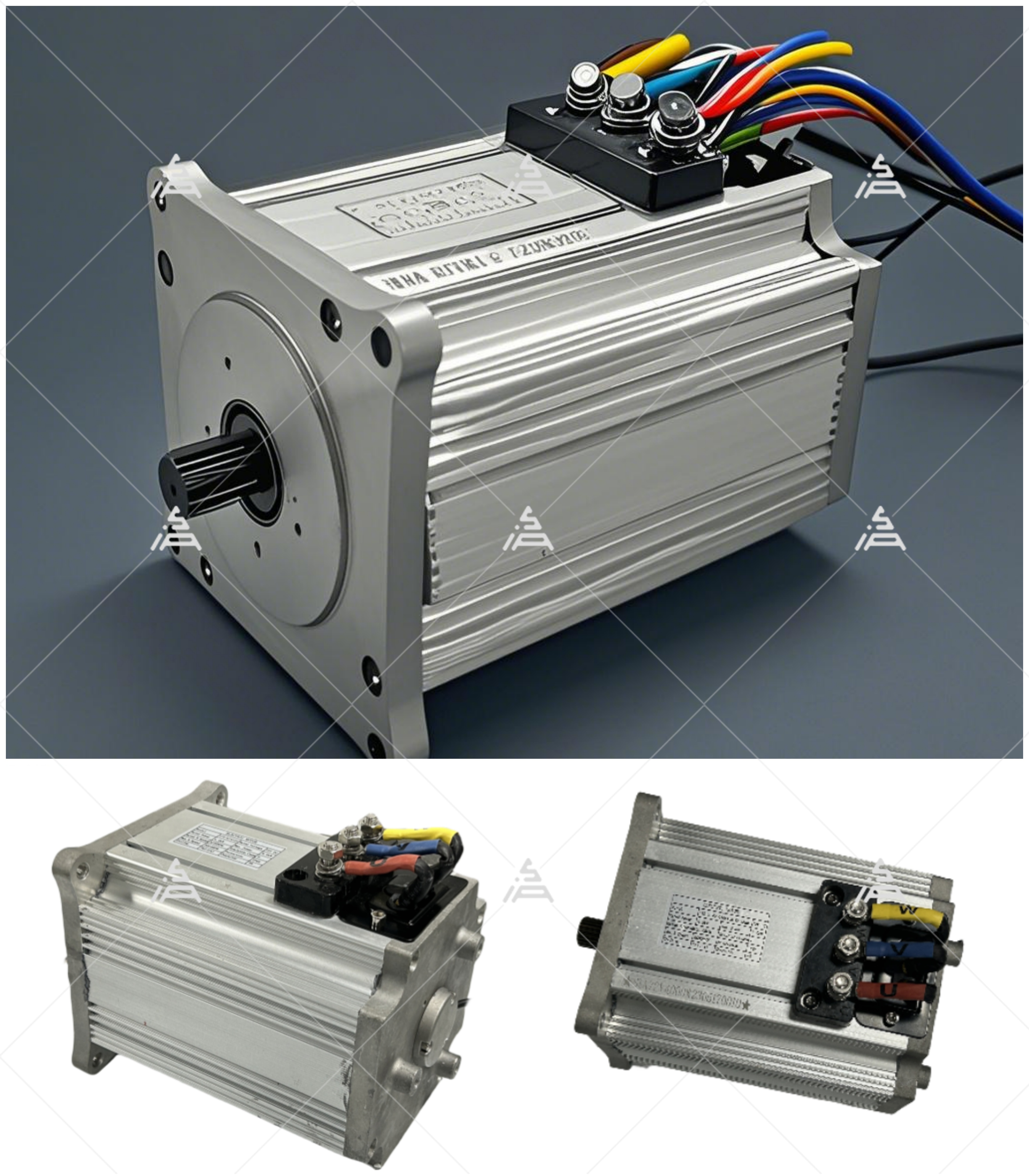

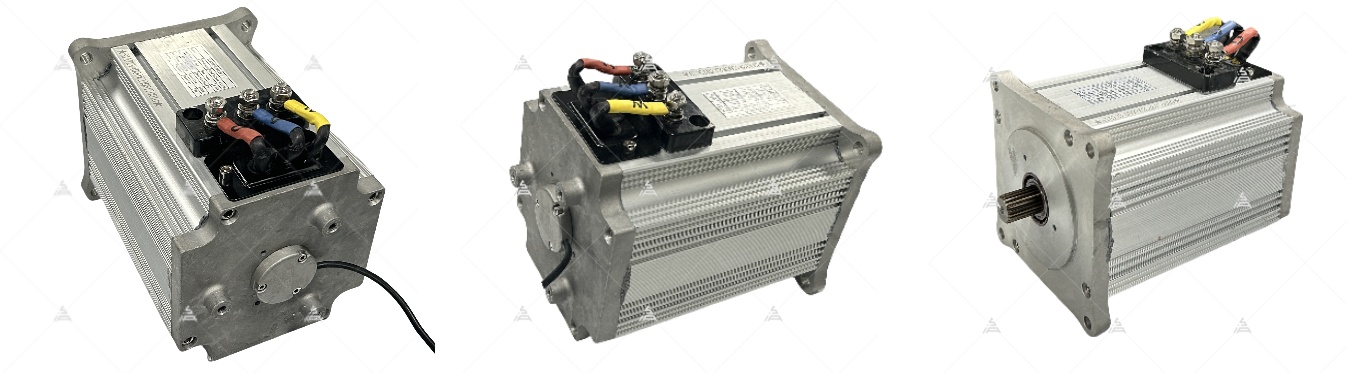

Multi-angle product photos：

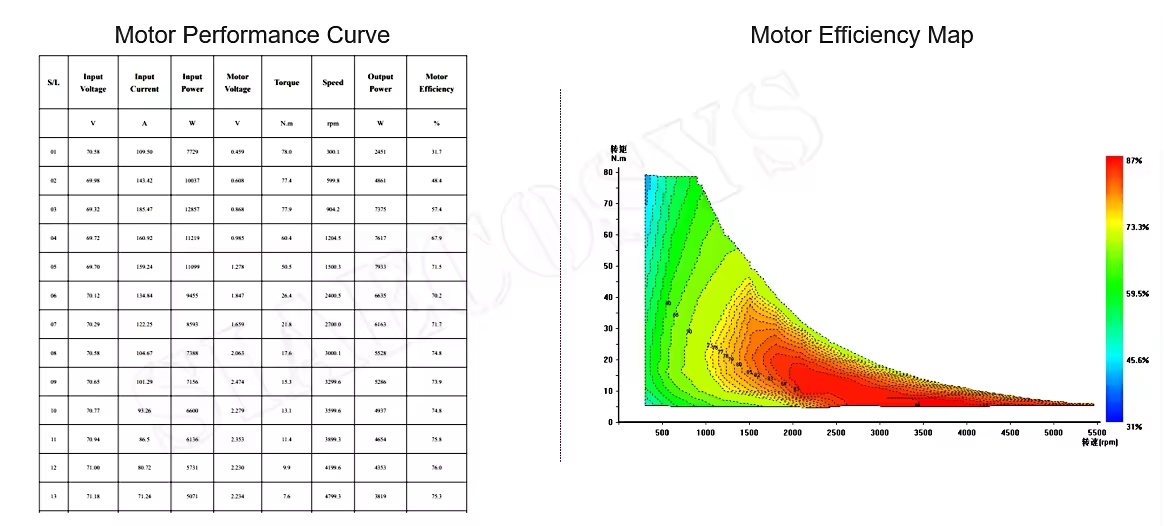

4kW Motor Test Report：

Various vehicle usage scenarios

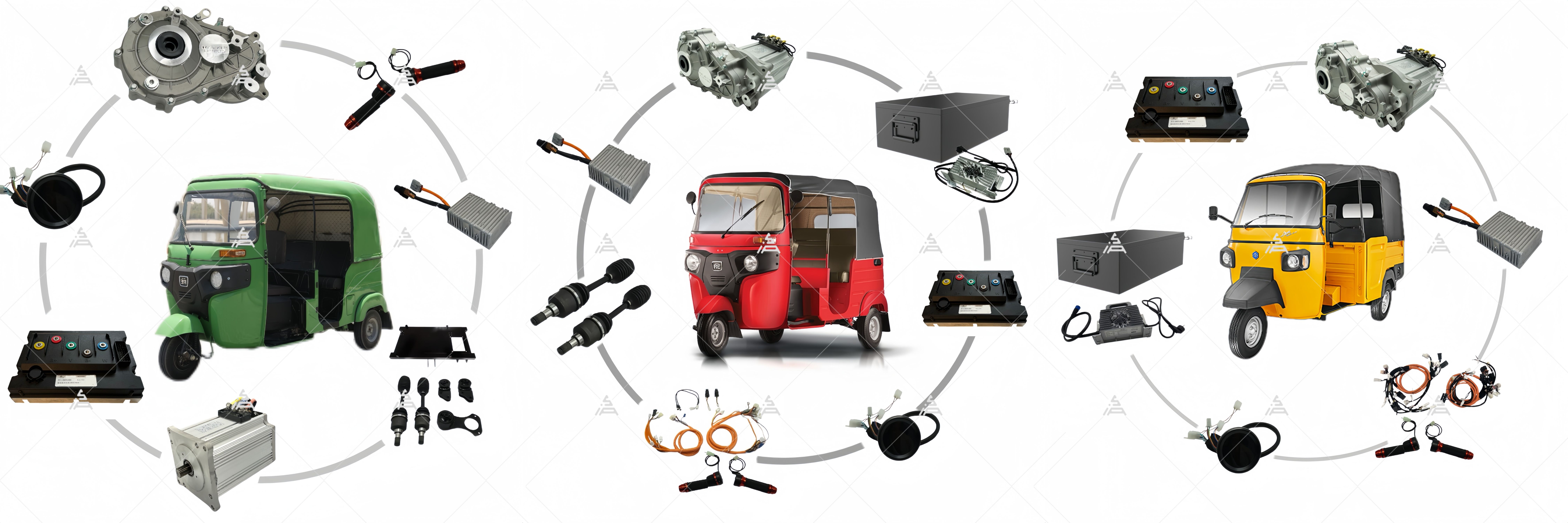

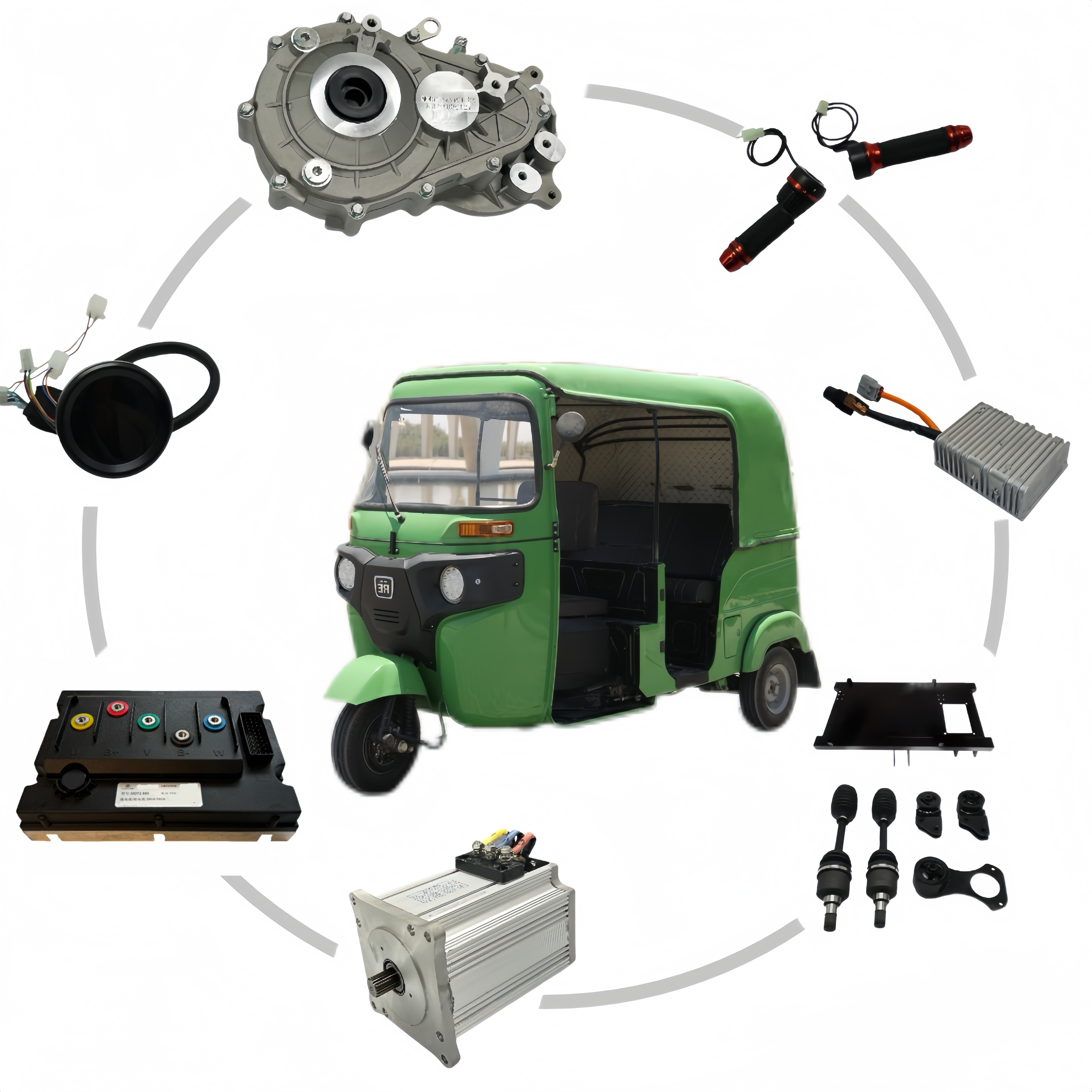

Click on the picture below to learn about our Tuk-Tuk power kit!

Click below to contact our team or request your tailored quotation today!
