EV Motor Controller CJ721200 (48-108V) Programmable CAN Controller with Regenerative Braking

48-108V Controller For Electric Vehicle

The 72V 1200A Motor Controller is designed for PMSM and ACIM motors, with a wide 48–108V voltage range. It delivers up to 1200A phase current and 700A line current, ensuring powerful and efficient performance.

With FOC control, multiple communication options (RS485, CAN, Serial, Bluetooth), and forced water cooling, it provides stable operation. Built-in protections (UVP, OVP, OCP, OTP) and an IP67 rating make it reliable for harsh environments.

Ideal for mini EVs, golf carts, and heavy-duty electric vehicles.

Key Features

• Sine wave output for smooth and silent motor control

• Support for 48V, 60V, and 72V battery systems

• CAN 2.0B communication and PC parameter configuration

• Multiple drive modes: forward, reverse, regenerative braking

• Over-voltage, over-current, over-temp, stall protection

• Support for EABS, slope hold, anti-slip functions

• Bluetooth optional for mobile app configuration

CONTACT US

Product Description

-MCU 72V Motor Controller

CJ721200

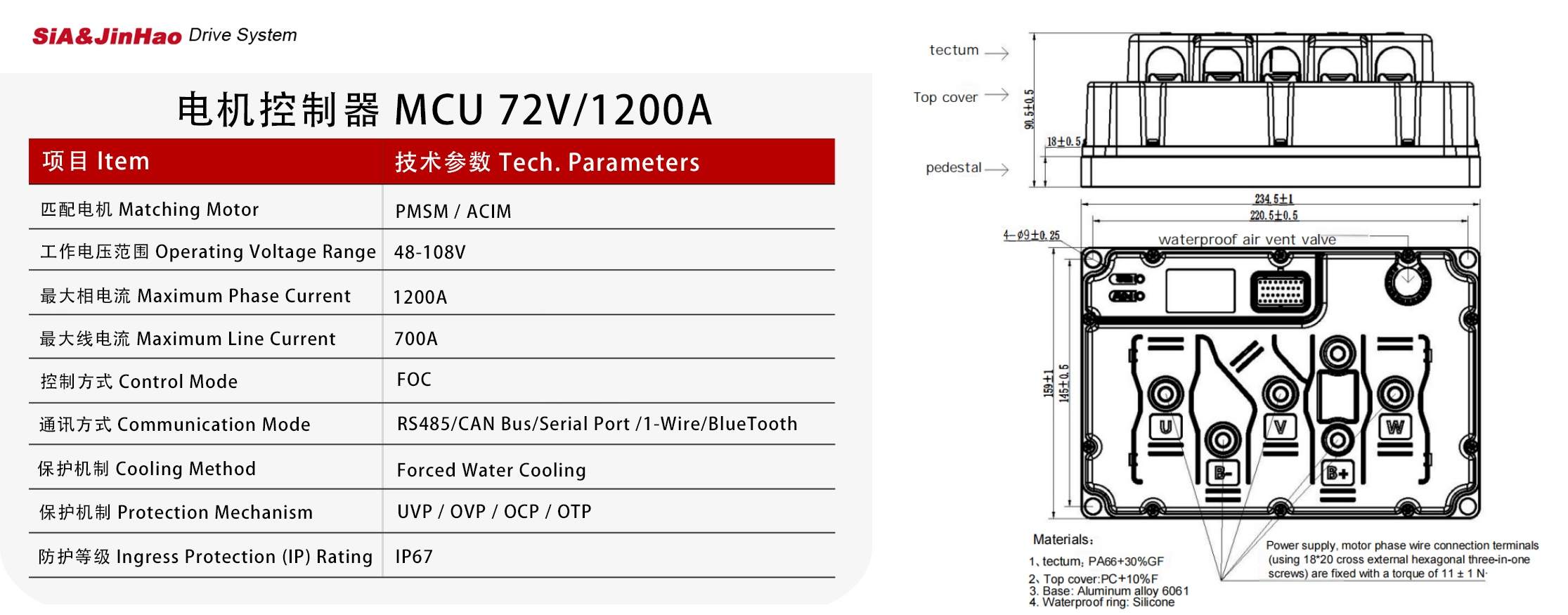

Basic Specification & Drawing:

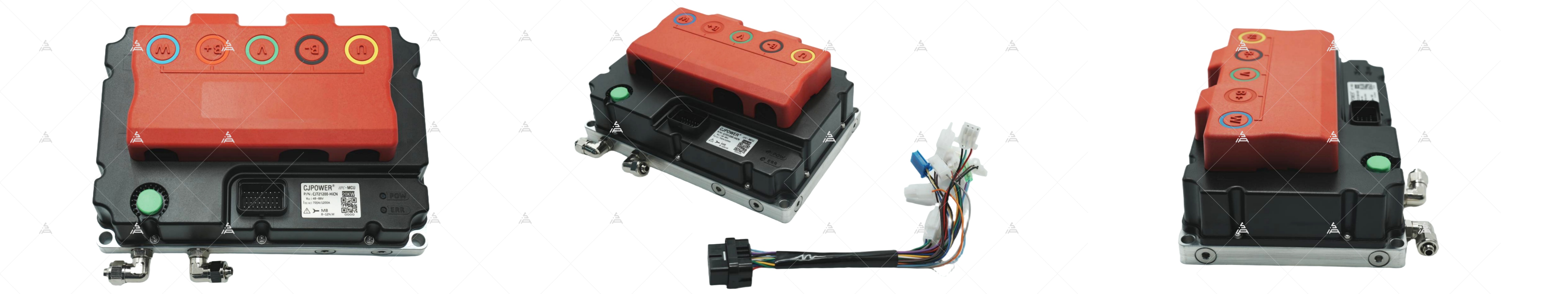

Multi-angle product photos：

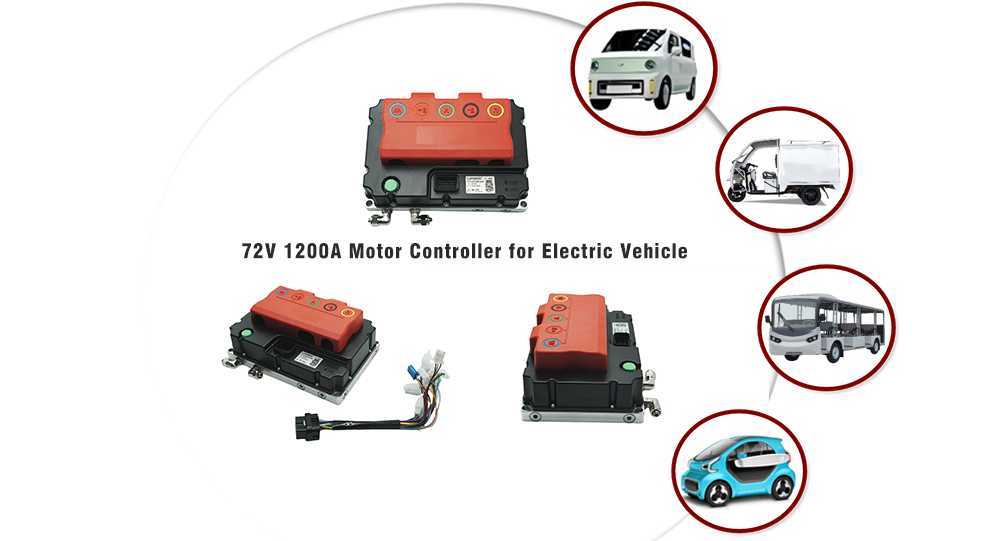

Various vehicle usage scenarios
