EV Motor Controller A8 2209 (48–72V) | Programmable CAN Controller with Regenerative Braking

APT Controller A8 2209 48-72V For 10kW PMSM Motor

Our 48V–72V sine wave controller is designed to deliver smooth, quiet, and efficient motor control for electric vehicles. It supports both PMSM motors, making it highly versatile for a wide range of applications, including electric tricycles, mini four-wheel EVs, cargo carriers, and utility carts. Equipped with CAN 2.0B communication protocol, the controller allows seamless integration with onboard systems and real-time data exchange. Its programmable logic enables flexible parameter customization to suit various load and terrain conditions, while built-in protection features—such as over-voltage, over-temperature, and short-circuit protection—ensure safe and reliable operation in demanding environments

Key Features

• Sine wave output for smooth and silent motor control

• Support for 48V, 60V, and 72V battery systems

• CAN 2.0B communication and PC parameter configuration

• Multiple drive modes: forward, reverse, regenerative braking

• Over-voltage, over-current, over-temp, stall protection

• Support for EABS, slope hold, anti-slip functions

• Bluetooth optional for mobile app configuration

CONTACT US

Product Description

-MCU 48-72V Motor Controller

APT.A8 7~18kVA (48~72V)

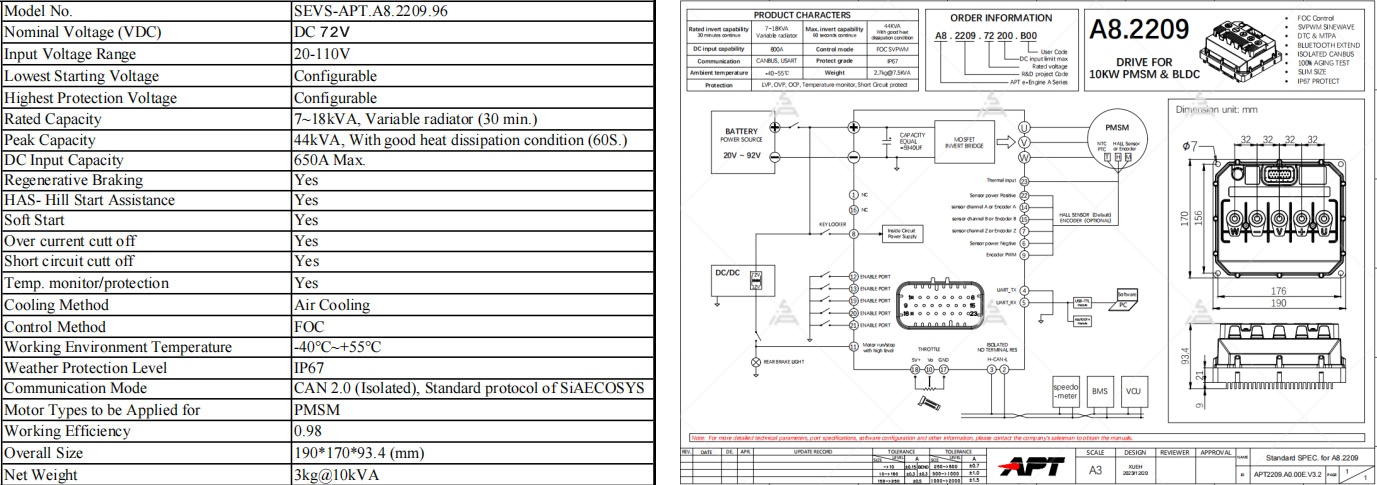

Basic Specification & Drawing:

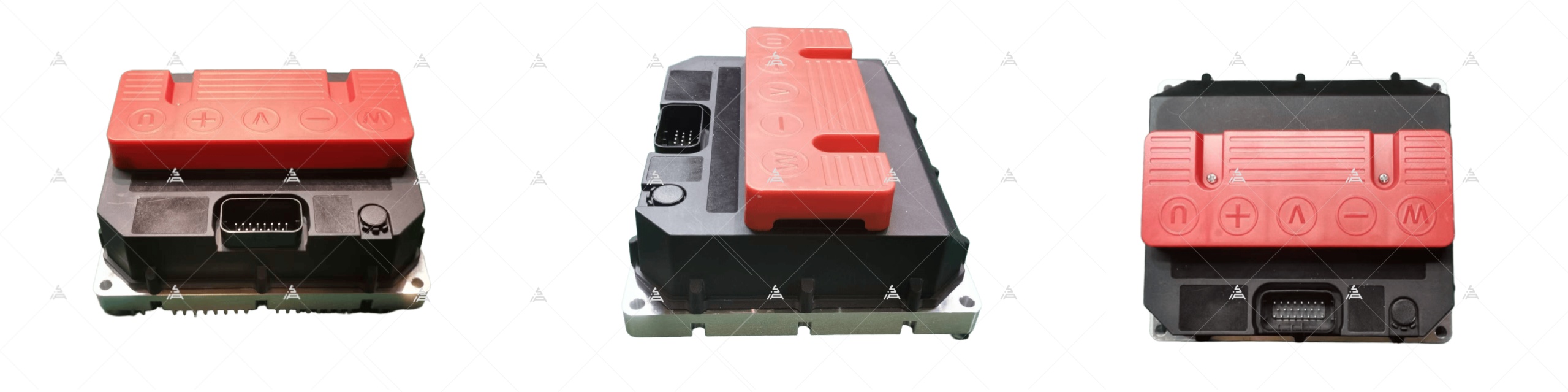

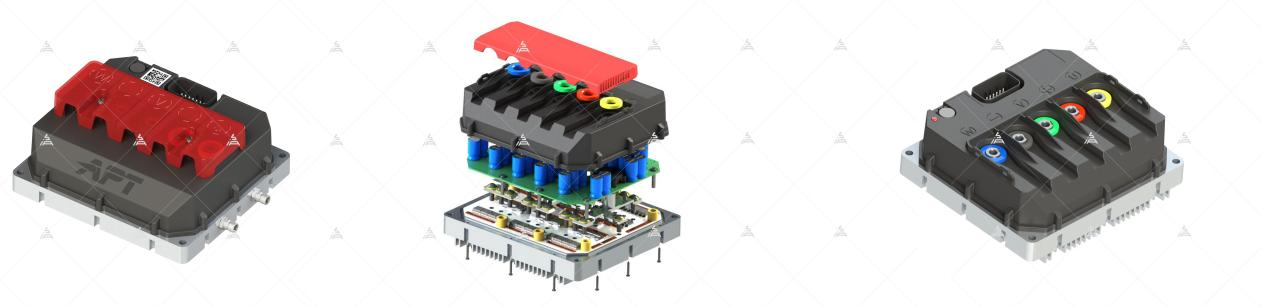

Multi-angle product photos：

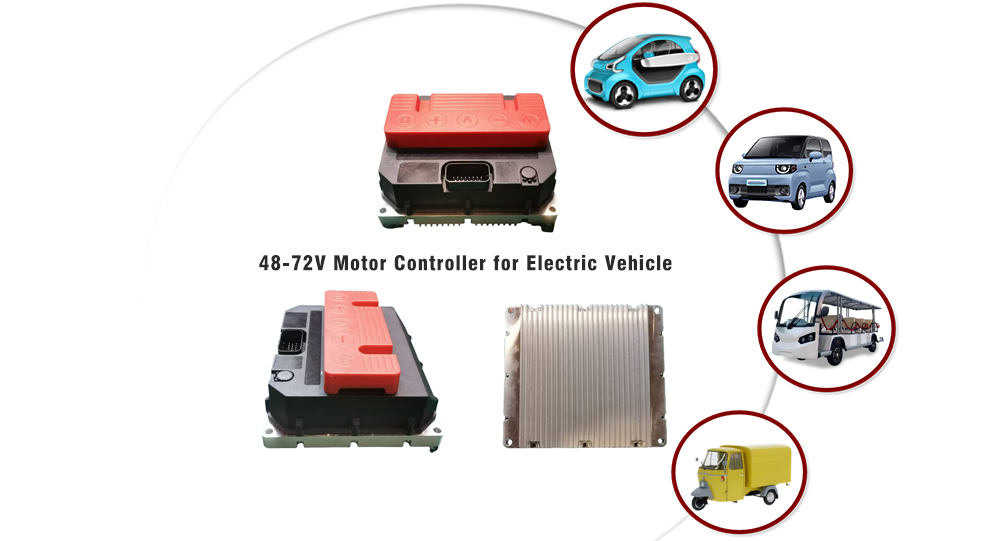

Various vehicle usage scenarios

Click on the picture below to learn about our rear axle powertrain kit!
