EV Motor Controller A8 2209 (72-96V) | Programmable CAN Controller with Regenerative Braking

APT Controller A8 2209 72-96V For 10kW PMSM Motor

This 72–96V sine wave motor controller is engineered for electric three-wheelers, cargo tricycles, and compact utility EVs. Supporting both PMSM and BLDC motors, it delivers smooth, efficient, and quiet power control, ideal for commercial and urban mobility applications.

The controller features advanced vector control algorithms and precise speed regulation, ensuring strong torque output and stable performance under variable loads. With CAN 2.0B communication, it integrates easily into modern EV systems, supporting real-time data exchange and remote parameter tuning.

Built-in safety protections—such as over-voltage, over-current, over-temperature, and short-circuit safeguards—ensure reliable and secure operation. The controller also includes logic for DC contactor management, improving system startup safety and simplifying integration.

Encased in a rugged IP65/67 housing with Class H insulation, the controller is suitable for both air- and liquid-cooled systems, making it a dependable choice for high-duty EV applications in diverse environments.

Key Features

• Supports both PMSM and BLDC motors

• Sine wave and vector control for quiet, efficient operation

• CAN 2.0B communication for diagnostics and system integration

• Programmable parameters to adapt to different vehicle types

• Built-in protections: over-voltage, under-voltage, over-current, over-temp, short-circuit

• Integrated DC contactor logic for safer and simpler control

• IP65/IP67 protection and Class H insulation for rugged, outdoor-ready performance


  CONTACT US


  ---







Product Description

-MCU 48-72V Motor Controller

APT.A8 7~18kVA (48~72V)

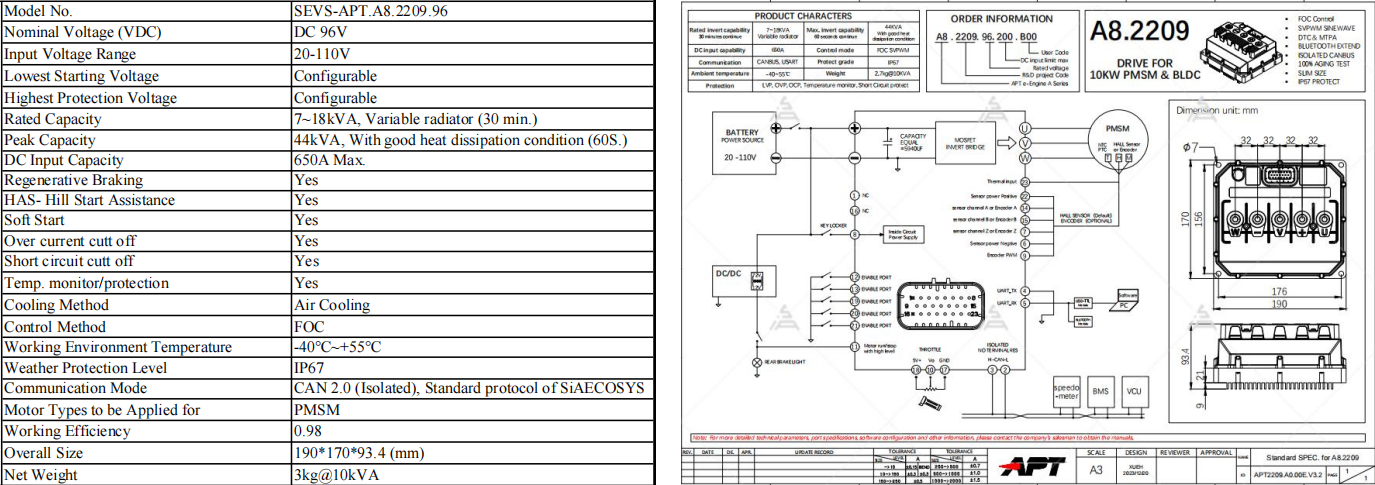

Basic Specification & Dimension Drawing：

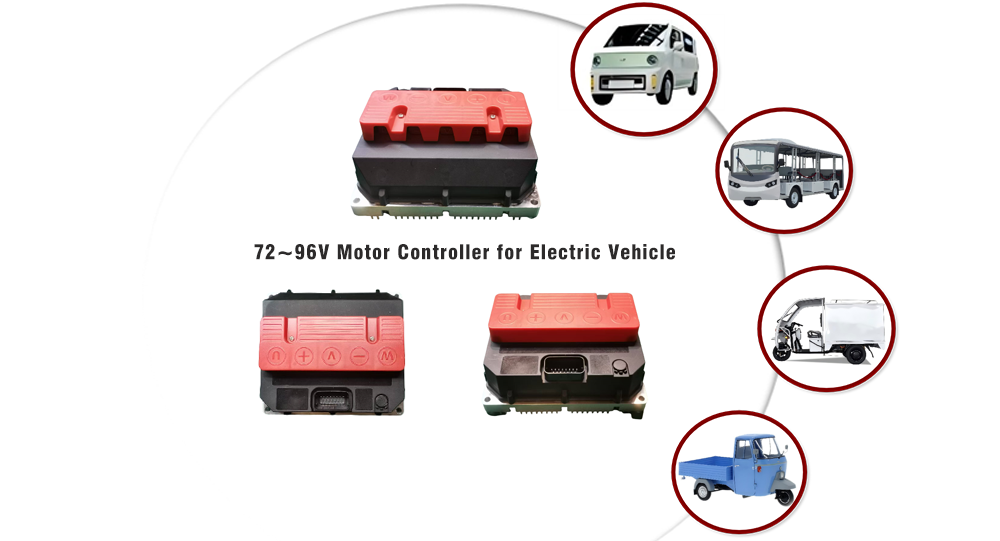

Multi-angle product photos：

Various vehicle usage scenarios

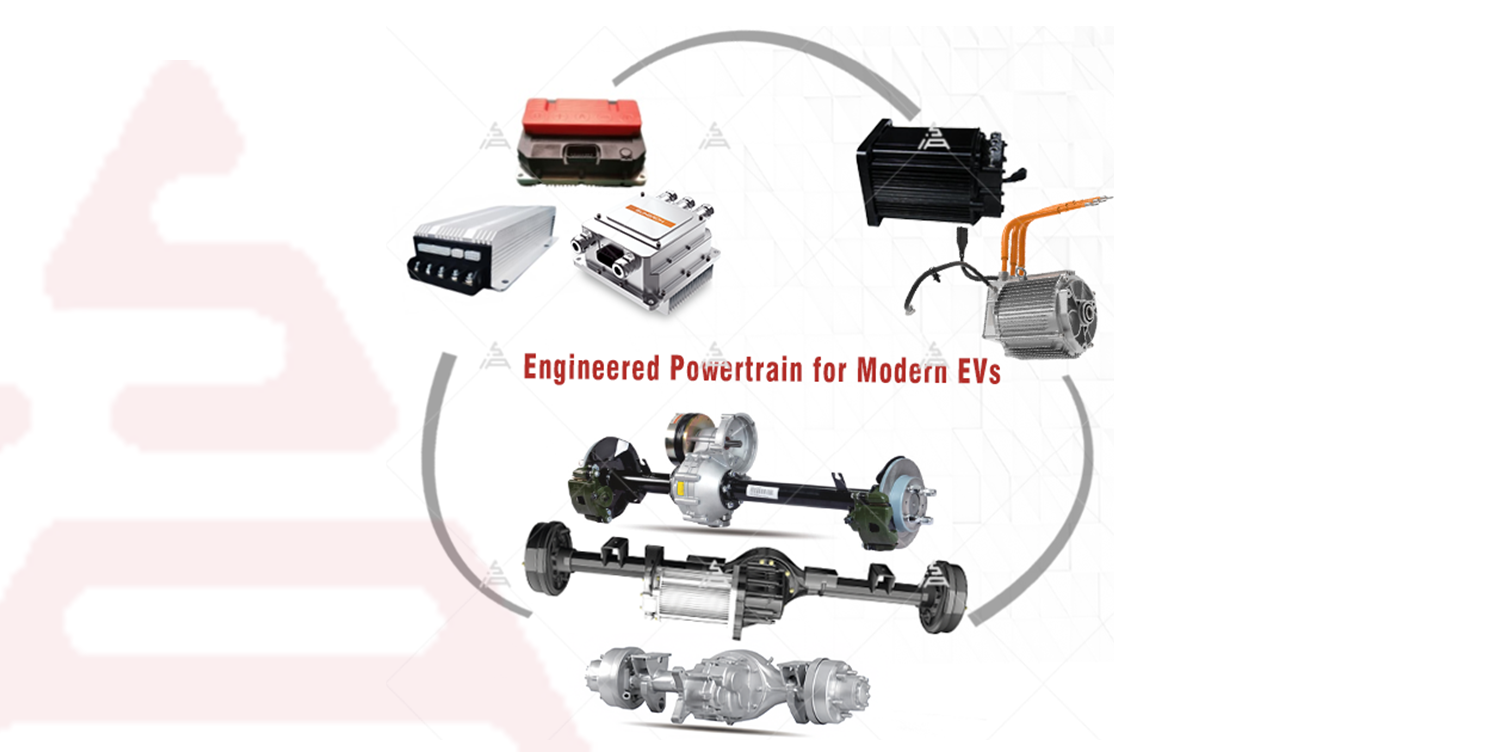

Click on the picture below to learn about our rear axle powertrain kit!
